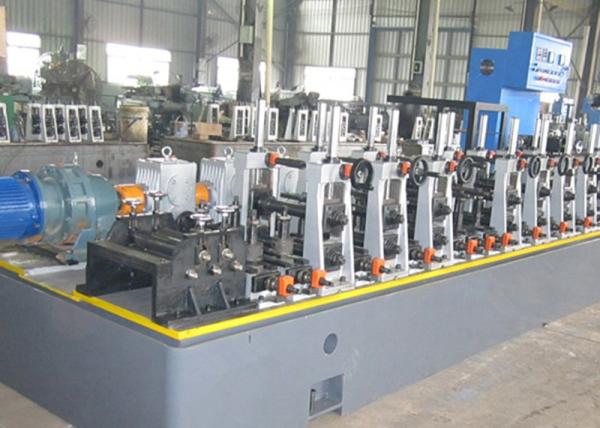

Construction 30 - 100 Mm High Frequency Pipe Mill Welded

Name: Construction 30 100 Mm High Frequency Pipe Mill Welded
Brand: TengTian
Price: 100000 USD

Buy cheap Construction 30 - 100 Mm High Frequency Pipe Mill Welded product

Brand Name : TengTian

Model Number : 100

Certification : CE, ISO9001, BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T, D/A, T/T

Supply Ability : 4 Sets/Year

Delivery Time : 300 work days

Packaging Details : Export waterproof and Seaworthy packing.

Product name : Construction 30 - 100 Mm High Frequency Pipe Mill Welded Pipe Production Line

Forming method : Roller Squeeze

Warranty : One year

Pipe material : Carbon Steel

Pipe shape : round and square

Thickness : 1 . 0 mm - 3 . 0 mm

Pipe diameter : 30 - 100mm

Key words : High Frequency Pipe Mill Welded Pipe Production Line

Contact Now

Construction 30 - 100 Mm High Frequency Pipe Mill Welded Pipe Production Line

1. 30 - 100 Mm High Frequency Pipe Mill Welded Pipe Production Line Production Process

Loading car → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Layout table

2. 30 - 100 Mm High Frequency Pipe Mill General Introduction:

102 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 31.8--101.6mm thickness:1.0-3.25mm

Square pipe size: 25×25--80×80mm thickness:1.0-3.0mm

Rectangular size: 20×30-50×100mm thickness:1.0-3.0mm

3. 30 - 100 Mm High Frequency Pipe Mill Main Parameters and Specifications:

Material Specifications:

Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa,σs≤275MPa
strip width	100～320mm
strip thickness	1.0～3.25mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤4T

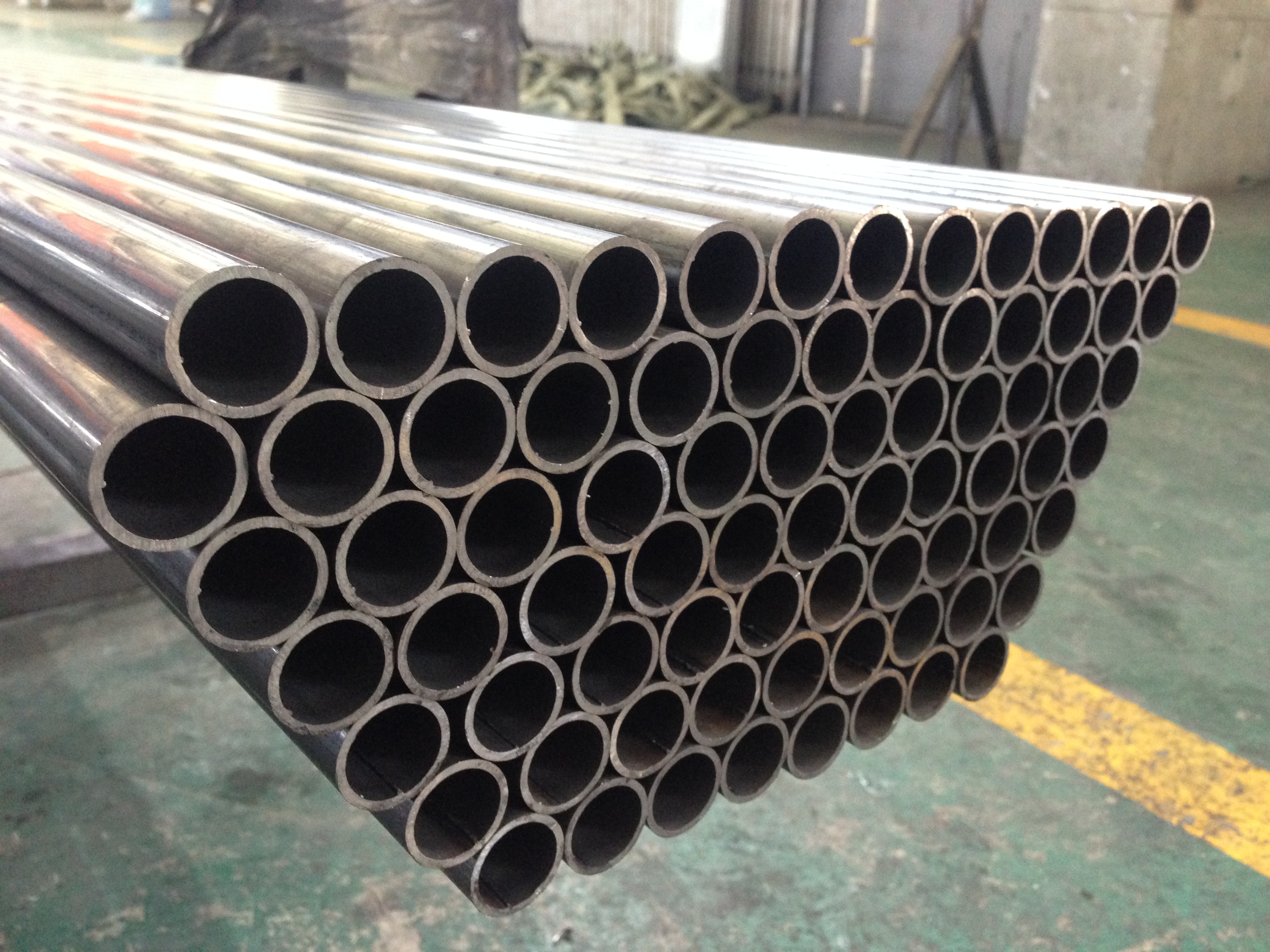

Welded Pipe Specification:

Round Pipe Diameter	Φ31.8～φ101.6mm
Square tube size	25x25-80x80mm
strip thickness	1.0-3.25mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	20-80m/min
