Galvanized 300KW Automatic Erw Pipe Manufacturing Machine Line

Galvanized Steel Pipe Manufacturing Machine 300KW ERW Automatic Line

ERW Pipe Mill Features: high precision pipe making, stable performance, high yield, full automation, simple operation, durable, sturdy machine, continuous production, high efficiency, less material waste, and low production cost. Pipe Mill Machine including: Uncoiler, forming welding section, welding seam leveling, welding seam grinding section, initial sizing section, bright solid solution, sizing and straightening section, pipe cutting machine, output cutting platform. The production line control system is: intelligent high-precision PLC control, man-machine display, simple operation, easy to use, safe and reliable.

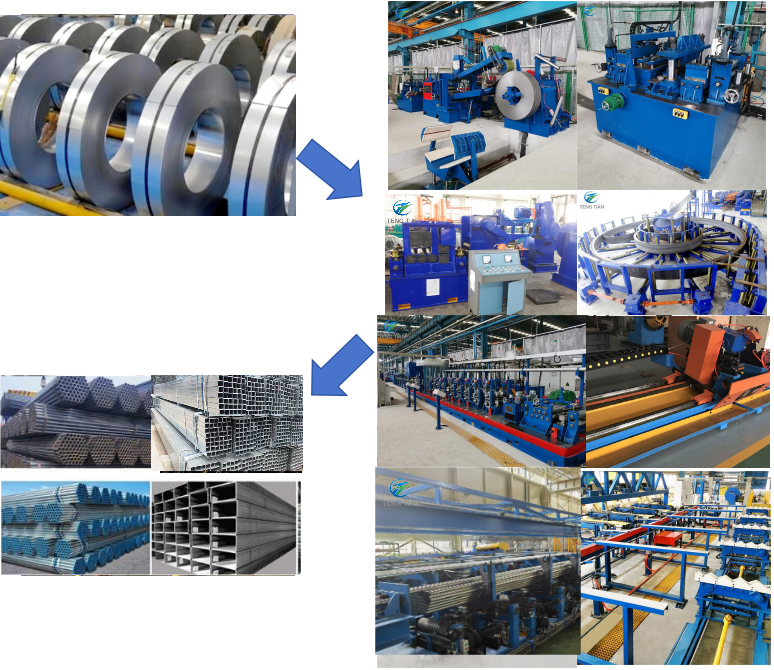

Mill Tour

Step 1 - Coils

There are carbon steels that are going to be made into pipe and tube for you

Step 2 - uncoiler

The carbon steel coil is placed on the uncoiler

Step 3 - Leveler

The coil stock is leveled

Step 4 - Mill

Then it goes through a series of rolls that form the flat steel into pipe

Step 5 - Mill Rollers

Rolls form this size schedule into shape

Step 6 - Welder

An Electirc Resistance Welder Finishes the pipe or tube

Step 7 - Scarfer

The seam is “scarfed” to make the pipe or tube smooth all the way around.

Step 8 - Saw

Finally, the pipe and tube is sawed to length

Industrial Applications:

Galvanized erw pipe manufacturing machine

Automatic erw pipe manufacturing machine

Erw galvanized pipe making machine

Galvanized 300KW Automatic Erw Pipe Manufacturing Machine Line Images
