76mm Galvanized Steel Pipe Mill for Square and Round Tubes
Product Specifications
| Attribute | Value |
| Model | 76mm Galvanized Steel Pipe Making Machine Square Tube Mill |
| Production | Square pipe, round pipe |
| Name | Steel Pipe production line |
| Other pipe | L T Z pipe |
| Max size | 76mm |
| Thickness | 3.0mm |
| Length | 6-12m |
| Rollers | Cr12, Cr12Mov |

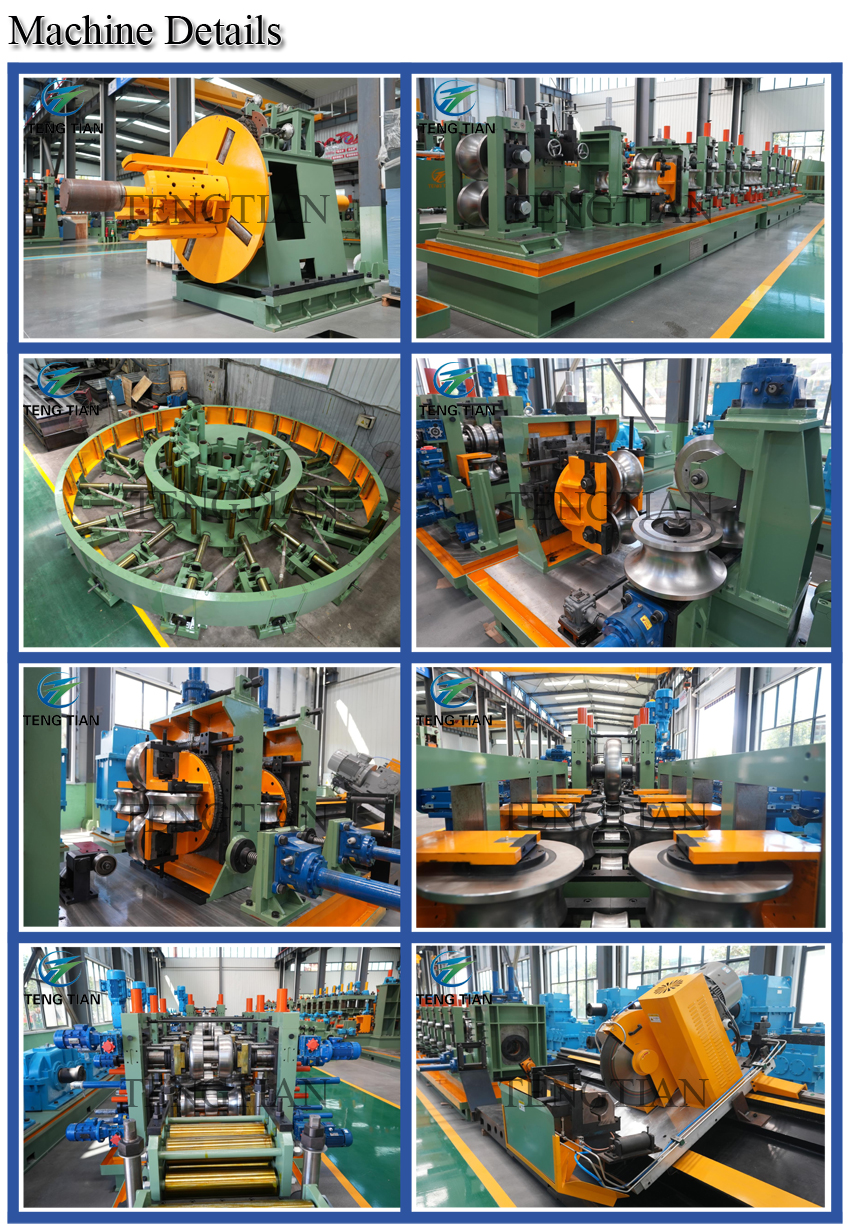

Machine Overview
This 76mm Galvanized Steel Pipe Making Machine is designed for high-precision production of welded steel pipes, including round pipes, square pipes, and deformed pipes (LTZ pipes). Featuring advanced roll pass design, the production line delivers superior quality welded steel pipes with excellent machining precision.
Technical Specifications
Material Specifications
- Standard: Carbon steel, galvanized steel
- Material: Low carbon steel and low alloy constructional steel
- Mechanical properties: σb≤520Mpa, σs≤365MPa
- Strip Width: 47-240mm
- Strip Thickness: 1.0-3.0mm
- Inner Diameter of Coils: Φ508mm
- Outer Diameter of Coils: Φ1300～φ2000mm
- Coil Weight: ≤3T
Pipe Specifications
- Pipe Diameter: Square pipe: 20x20-60x60mm, Thickness: 1.0-3.0mm
- Length: 6m
- Pipe-cutting Precision: 0-6mm
- Forming Speed: Max 120m/min for 2mm thickness
Buyer Requirements
- Workshop: 50x12m, H＞5m (crane to ground)
- Power: Approx. 850KW 380V/60Hz/3phases
- Circulation Cooling Water: Flow: 30+30 CBM, Pool Volume: 40m³
- Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²
- Cable: All external cables to be supplied by buyer after machine installation

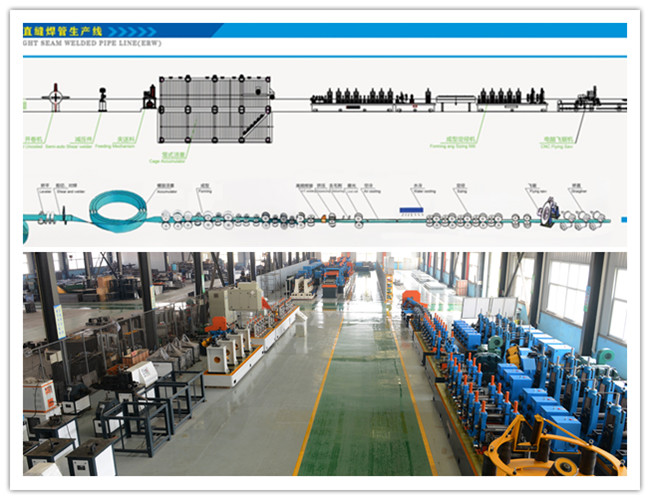

Production Process
Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, pipe diameter sizing
Pipe length sizing and cutting
Inspection
Packaging
Quality Assurance & Service
Our technical team provides on-site debugging, maintenance, and commissioning services upon equipment arrival. We conduct comprehensive training for your operation and maintenance personnel. The equipment comes with a 12-month warranty from the arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that affect equipment performance.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
